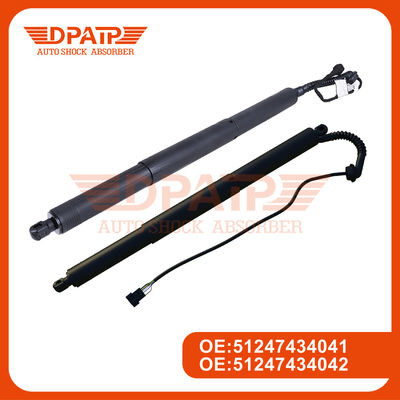

51247434042 51247434041 Car Auto Parts Electric Tailgate Gas Strut for BMW X5 F15 F85

Technical Parameter Of The Electric Tailgate Strut

1. Voltage: Usually 12V (for passenger cars) or 24V (for commercial vehicles).
2. Thrust: Generally between 400N and 800N, depending on the weight and size of the tailgate.
3. Travel length: Usually between 500mm and 800mm depending on the model.
4. Operating temperature range: -40°C to +85°C, suitable for various climatic conditions.
5. Protection grade: Usually IP67, with excellent waterproof and dustproof performance.
6. Noise level: Less than 50 dB during operation to ensure quiet operation.
7. Service life: can support tens of thousands of opening and closing cycles, high durability.

Product Description

  The electric strut is mainly composed of ball and socket, hall sensor, motor, reducer, screw, nut, spring and other components. After receiving the command of the controller module, the motor is turned forward or reversed, and the torque is increased by decelerating through the reducer box, and the screw is driven to rotate, and the relative motion between the screw and the nut is generated. Under the help of the compression spring, the stay rod is extended or shortened, and the Hall sensor at the tail of the motor will feedback its signal to the controller to control the open and closed position of the stay rod.

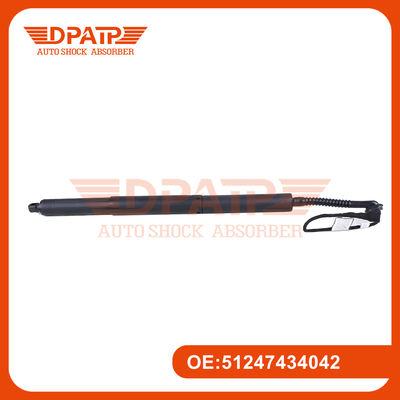

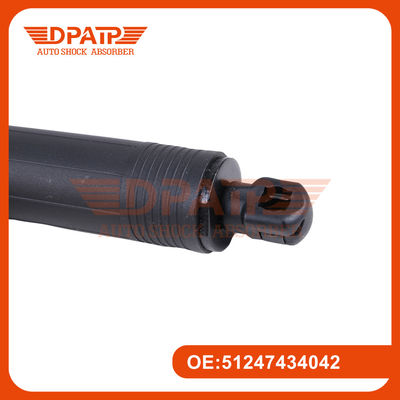

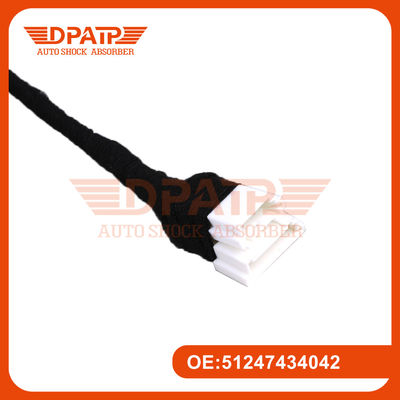

Pictures of Product

---





Certificate and Advantage

---
