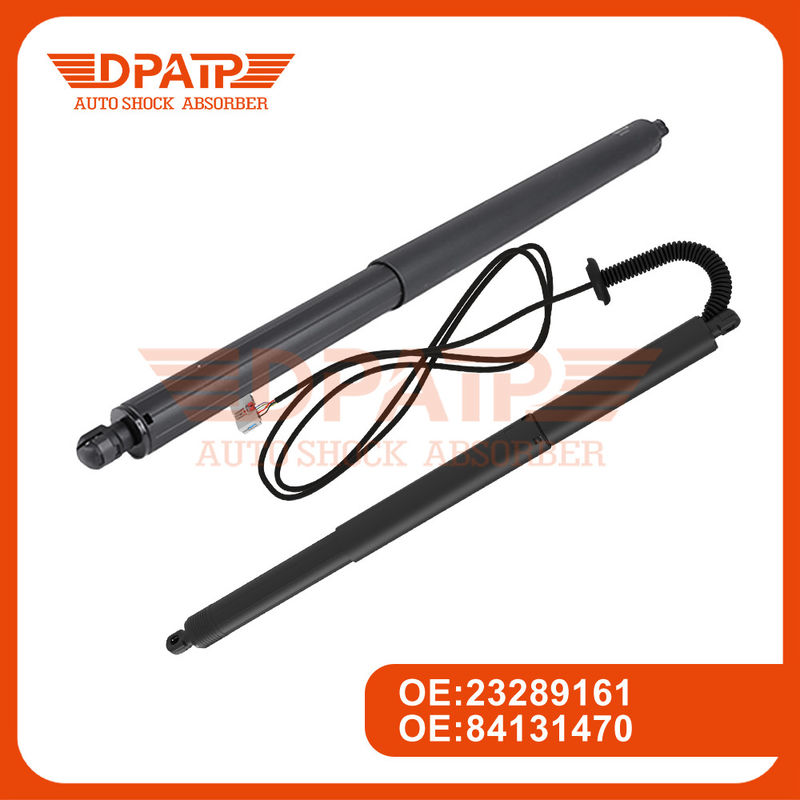

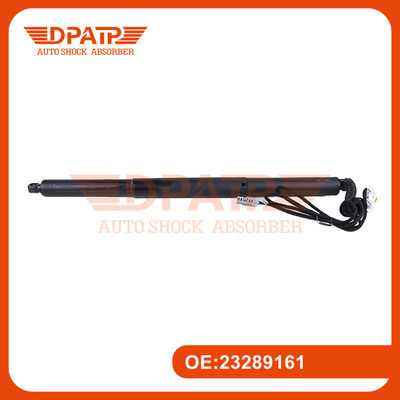

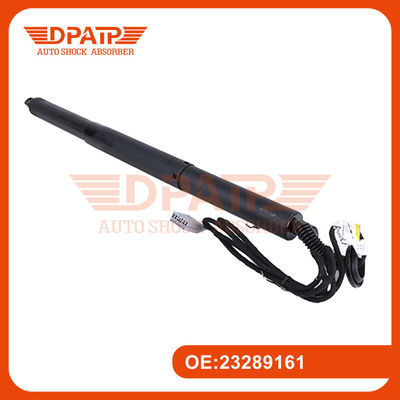

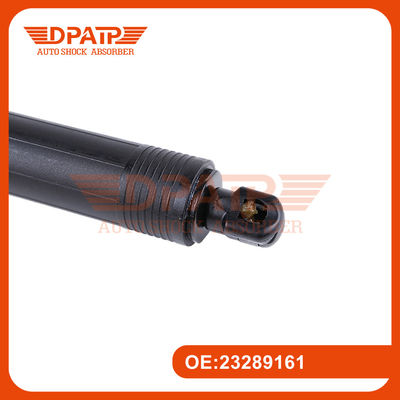

Auto Rear Tailgate for Chevrolet Equinox 23289161 84131470 Power Hatch Lift

Safety Detection

Obstacle sensing test: Set obstacles of different sizes and materials, and test whether the brace rod can sense and trigger the rebound protection mechanism in time during the closing process of the tailgate. Multiple tests ensure that the induction sensitivity meets the safety standard and avoids the risk of nip injury.
Electrical safety test: Use professional electrical testing equipment to test the insulation resistance, grounding resistance and voltage resistance of the electric tailgate system to ensure the safety of the electrical line, prevent the occurrence of dangerous situations such as leakage and short circuit, and ensure the safety of vehicles and drivers.

Structural Composition

Motor assembly: It is the power source of the electric tailgate support rod. It usually adopts a DC motor, which can convert electrical energy into mechanical energy to provide power for the opening and closing of the tailgate.
Transmission mechanism: It is generally composed of gears, racks, worms, worm wheels, etc. Its function is to convert the rotational motion of the motor into linear motion to promote the extension and retraction of the support rod.
Telescopic rod: It is a direct component to achieve the support and movement of the tailgate. It is usually made of high-strength aluminum alloy or steel. It has good strength and stability and can achieve smooth telescopic movement while bearing the weight of the tailgate.
Sensor: It includes position sensors and pressure sensors. The position sensor is used to detect the telescopic position of the support rod so as to accurately control the opening and closing degree of the tailgate; the pressure sensor is used to detect the resistance of the tailgate during movement to achieve safety functions such as anti-pinch.
Control module: Receives signals from switches in the car, remote control keys, etc., controls the operation of the motor, coordinates the various actions of the electric tailgate support rod, and ensures that it works accurately and safely according to the user's instructions.

Pictures of Product

---



Certificate and Advantage

---
