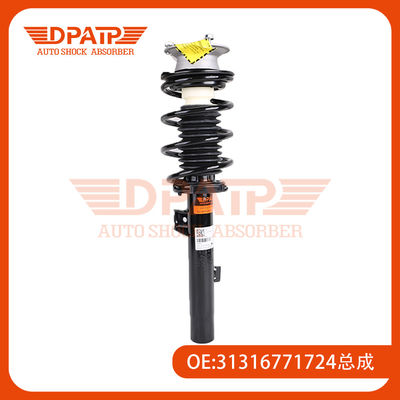

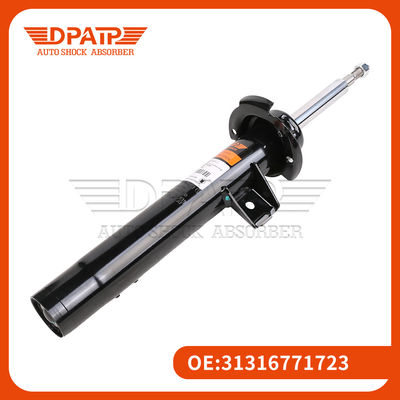

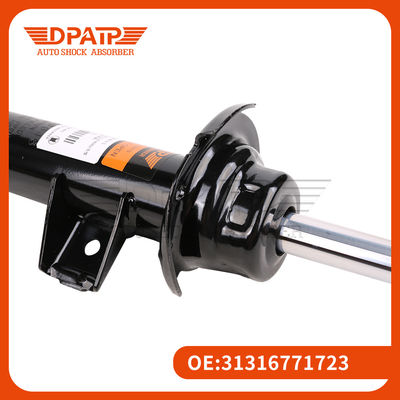

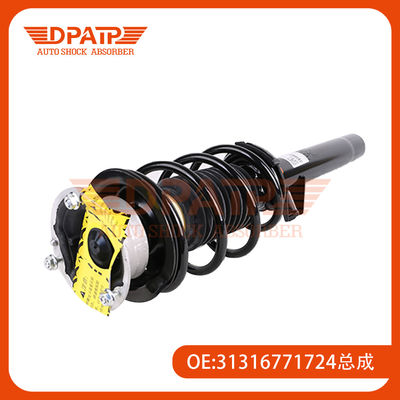

OEM Car Parts Wholesale 31316771723 31316784917 31316786005 31314036113 31316767321 31316796155 31316780193 31316771724 31316784918 31316786006 31316785590 31316796156 31316786017 31316771724 31316786018 31316784918 31314036114 31316767322 31316780194 Shock Absorber for BMW E90 E89 E92 E93

Effect

Improve ride comfort: inhibit the shock when the spring rebounds after absorbing shock and the impact from the road surface, accelerate the attenuation of the frame and body vibration, so that the vehicle is more stable during the driving process, reduce the sense of turbulence, and improve the ride comfort.
Improve control stability: in the vehicle turning, braking, acceleration and other operations, timely adjust the damping force, reduce the body of the roll, nod and tilt back and other phenomena, so that the vehicle control more stable, improve driving safety.

Description of Car Shock Absorber

The normal shock absorber works based on the principle of hydraulic damping. During the compression stroke, the axle approaches the frame, and the piston moves downward, forcing the oil in the lower chamber to flow into the upper chamber through the flow valve. At the same time, due to the space occupied by the piston rod, part of the oil flows back to the oil reservoir through the compression valve, forming a compression damping force.

During the extension stroke, the axle moves away from the frame, and the piston moves upward, causing the oil pressure in the upper chamber to rise. The oil pushes open the extension valve and enters the lower chamber. Meanwhile, the oil in the oil reservoir replenishes the vacuum in the lower chamber through the compensation valve, generating a greater extension damping force.

Through the oil flow and valve control in both strokes, the mechanical vibration is converted into heat energy and dissipated. In this way, it can effectively suppress the spring rebound and ensure the smoothness and comfort of the vehicle during driving.
